Case Study

Robotic laser wire additive repair for a large bridge component.

In Huangshi, Hubei, a large bridge structure was machined below tolerance in several areas. Instead of scrapping the part, the repair team used robotic laser wire deposition to rebuild the missing material, leave machining allowance, and send the component back for final finishing.

Laser wire additive repair bead pattern on a large bridge component
Field repair in Huangshi: robotic laser wire deposition before final machining.
Application

Bridge structure repair

A large carbon-steel bridge component had local machining error and needed material rebuilt on the surface.

Problem

Up to 3 mm too thin

The most serious areas were reported to be about 3 mm under target, which made direct acceptance risky.

Process

Robotic laser wire deposition

A robot followed a programmed path while laser energy melted ordinary carbon-steel welding wire onto the base.

Outcome

Repaired in about one week

The built-up surface created machining allowance so the customer could finish the part instead of replacing it.

Shop Floor Video

Bridge-structure laser wire welding in motion.

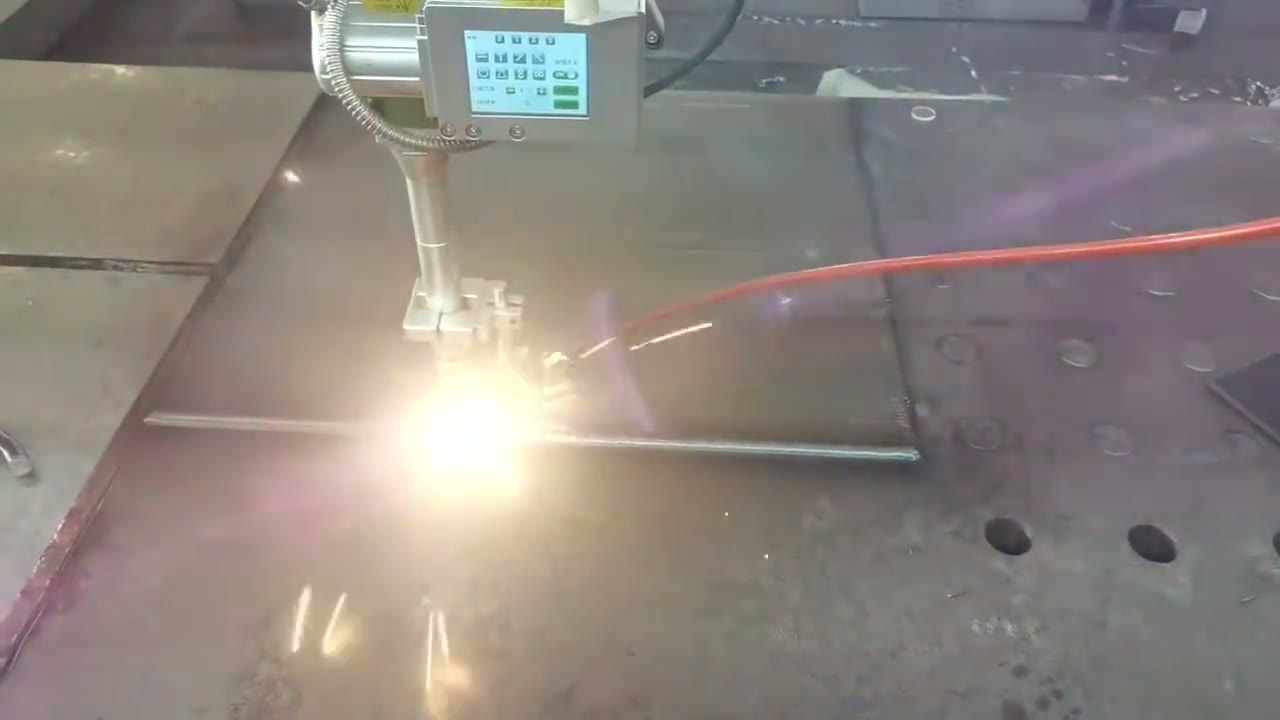

This clip shows robotic laser wire welding on a carbon-steel bridge structure component: wire feed, laser energy, and programmed robot motion working together on a long seam.

Carbon-steel bridge structure welding Robotic laser wire welding keeps the heat source, wire feed, and travel path steady across the workpiece.
Project Background

This was additive manufacturing used as remanufacturing.

Additive manufacturing is often reduced to the phrase "3D printing," but the industrial definition is wider. In this case, the goal was not to print a complete new part. The goal was directed deposition on an existing substrate: rebuild the missing surface, keep heat input under control, and preserve the value already locked into a large fabricated component.

The customer had a bridge-related part that became too thin during machining. For a large component, scrapping the part would mean losing the material, fabrication, machining time, and project schedule. Robotic laser wire deposition offered a practical middle path: add material only where needed, then machine the repaired surface back to the required dimension.

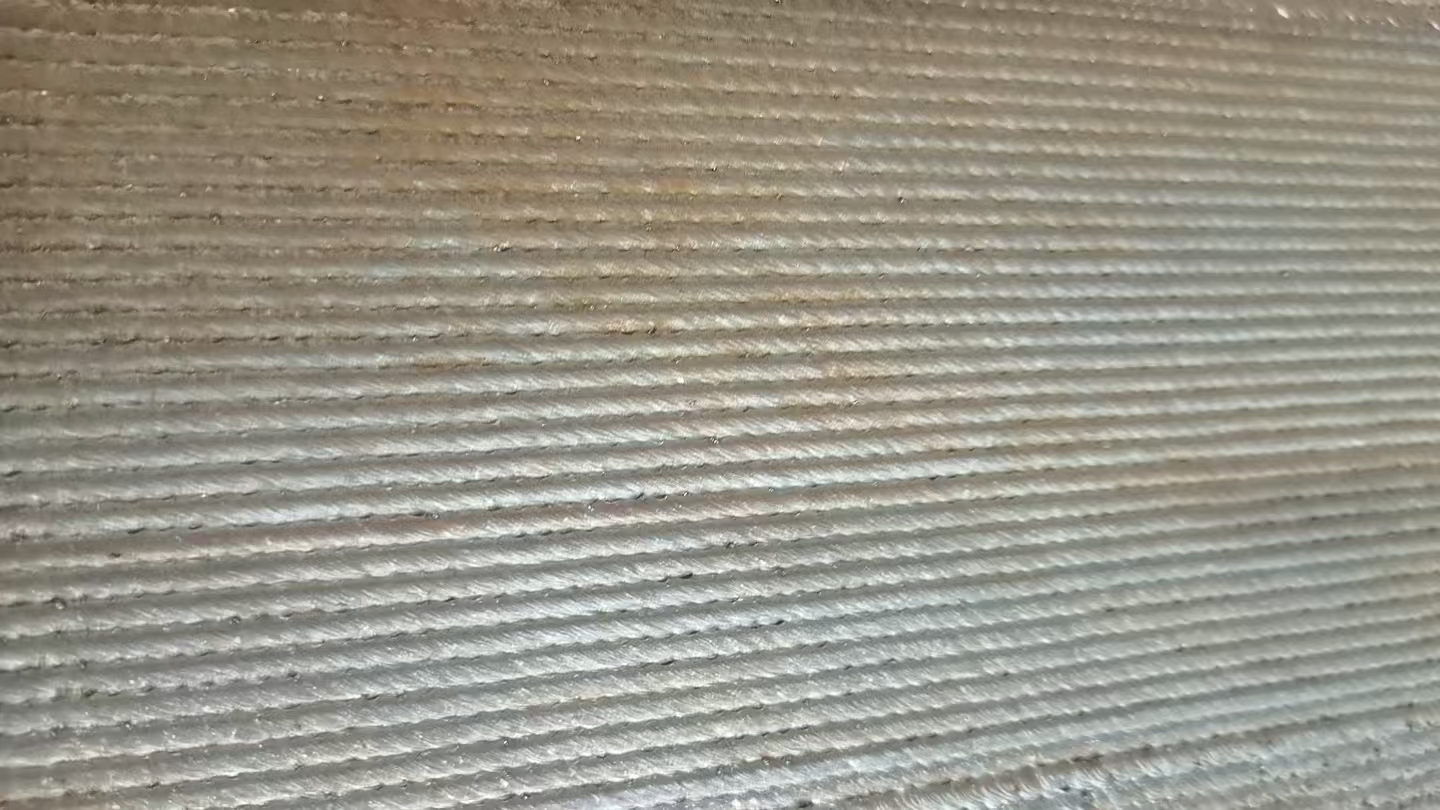

Close-up of overlapping laser wire deposition tracks before machining
Close-up of the deposited repair layer. The surface is intentionally left with allowance for later machining.
Repair Route

Programmed deposition first, precision machining second.

Step What Happened Why It Matters
1. Locate undersize zones The team identified the machined areas that needed rebuild, including locations up to about 3 mm short. The repair path focused on the actual defect area instead of reheating the whole structure.
2. Program the robot path The robot was taught to follow stable, repeated deposition tracks across the repair zone. Automation reduced operator fatigue and kept the bead spacing more consistent across a large area.
3. Deposit filler wire Laser energy melted carbon-steel welding wire onto the Q235-class base material. Wire feed is cost-effective and efficient for this kind of carbon-steel surface rebuild.
4. Leave machining allowance The repair layer was built slightly above the final target dimension. The deposited surface does not need to be final-finish quality; the final pass comes from machining.
Why Laser Wire

Lower heat input than arc build-up.

  • Less thermal distortion risk on a large machined structure
  • More stable deposition path than manual repair over a broad surface
  • Higher material utilization and lower consumable cost than many powder routes
  • Good fit when the rebuilt surface will be machined after deposition
What It Is Not

It is not finished-shape 3D printing.

  • The process restores material on an existing high-value part
  • Final dimensional accuracy comes from leaving allowance and machining it back
  • The robot program controls deposition location, not the final surface roughness
  • The business value is avoiding scrap and shortening recovery time
Training Samples

Simple shapes are useful tests for real additive work.

The star, circle, and heart samples are used for operator training and process practice. They are not decorative only: each shape forces the team to control a different problem in robotic laser wire deposition.

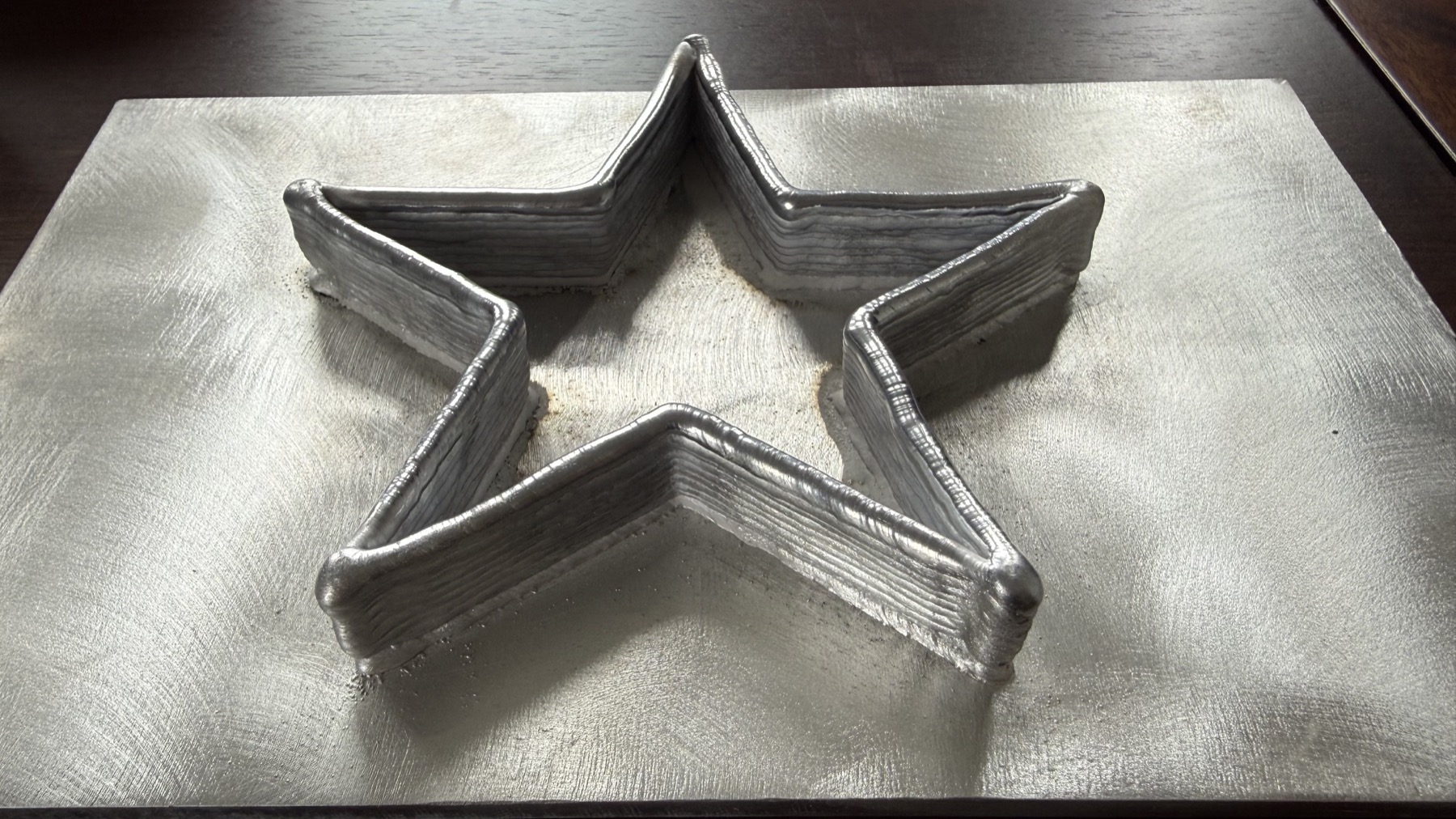

Five-point star robotic laser wire deposition training sample
Corners

Five-point star path

Sharp corners and direction changes expose whether the robot path, wire feed, and heat input stay stable at each turn.

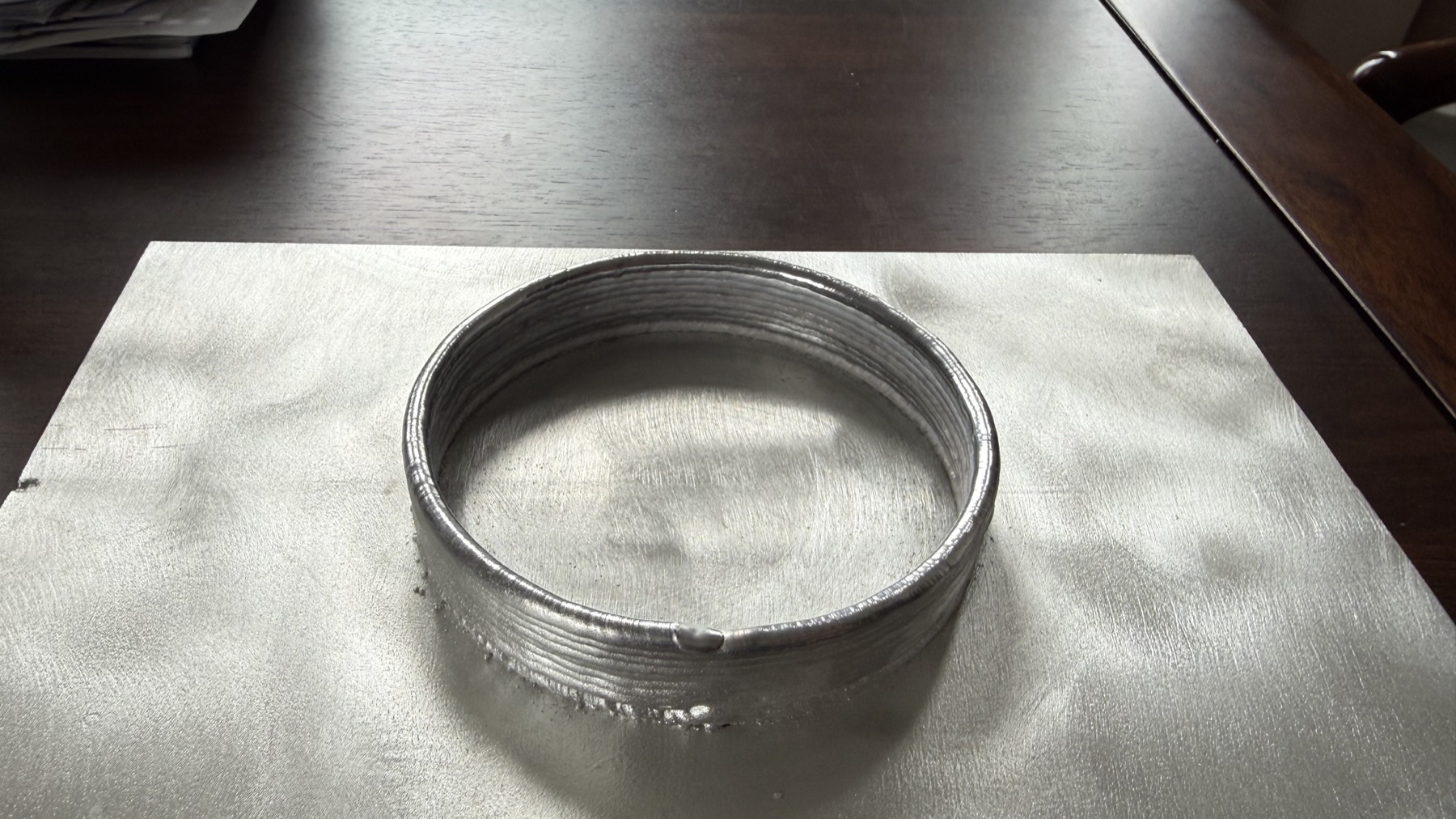

Circular robotic laser wire deposition training sample
Closed Loop

Circular deposition path

A circle checks smooth motion, bead overlap, start-stop handling, and whether the final layer closes cleanly.

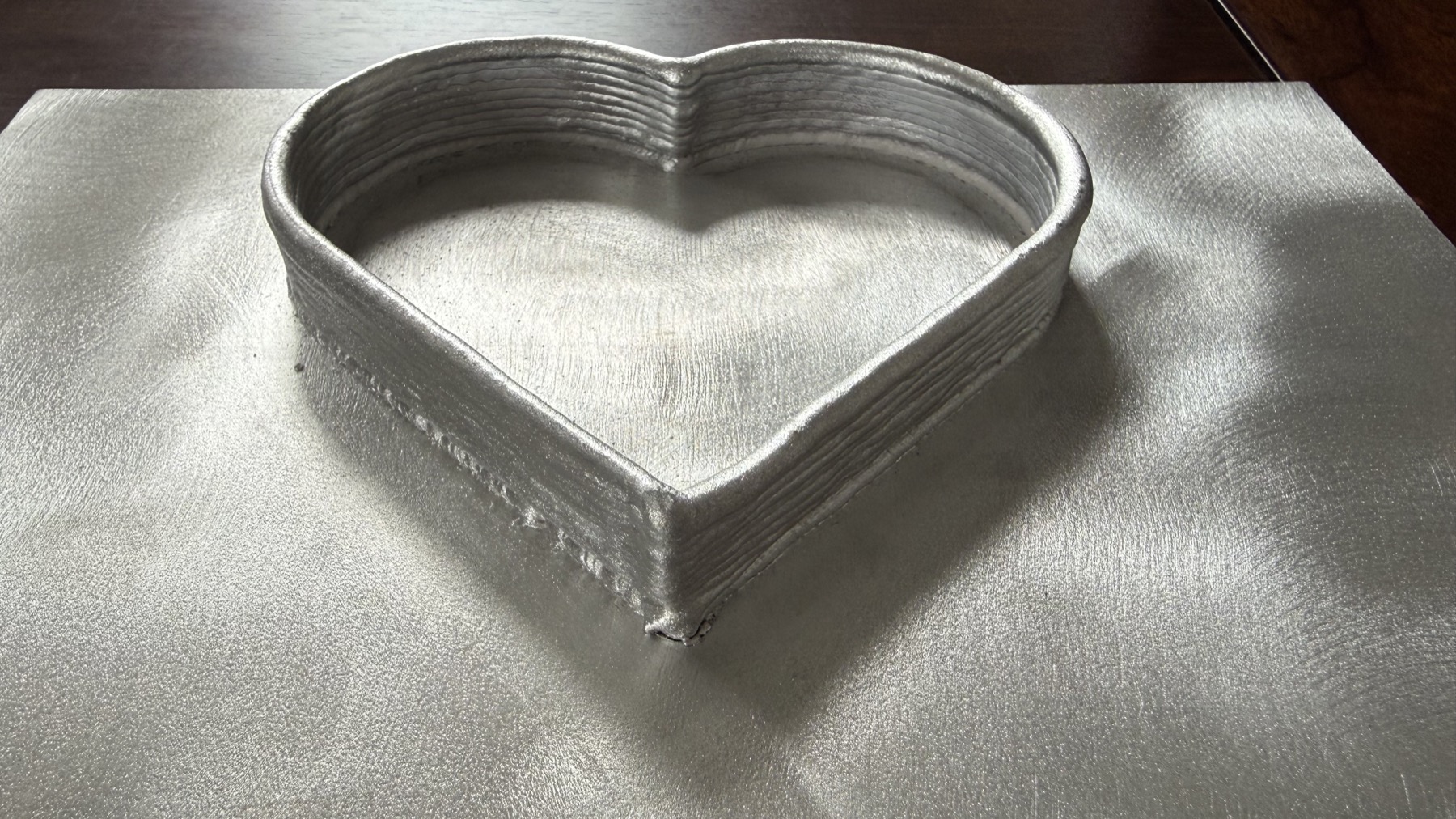

Heart-shaped robotic laser wire deposition training sample
Mixed Geometry

Heart-shaped path

Curves, a central valley, and a pointed bottom make it a compact practice part for multi-layer path control.

Best-Fit Applications

Use this route when the part is valuable enough to save.

  • Large bridge, energy, mold, shaft, and heavy equipment parts with local undersize or wear
  • Carbon steel and alloy surfaces where wire filler is available and machinable
  • Repair zones that need controlled heat input to avoid distortion
  • Parts where post-deposition machining is already part of the acceptance route
Engineering Note

Precision comes from the full chain.

Robotic laser deposition gives repeatable material placement. Final precision still depends on measuring the defect, planning the allowance, controlling heat input, and machining the rebuilt layer back to size.
